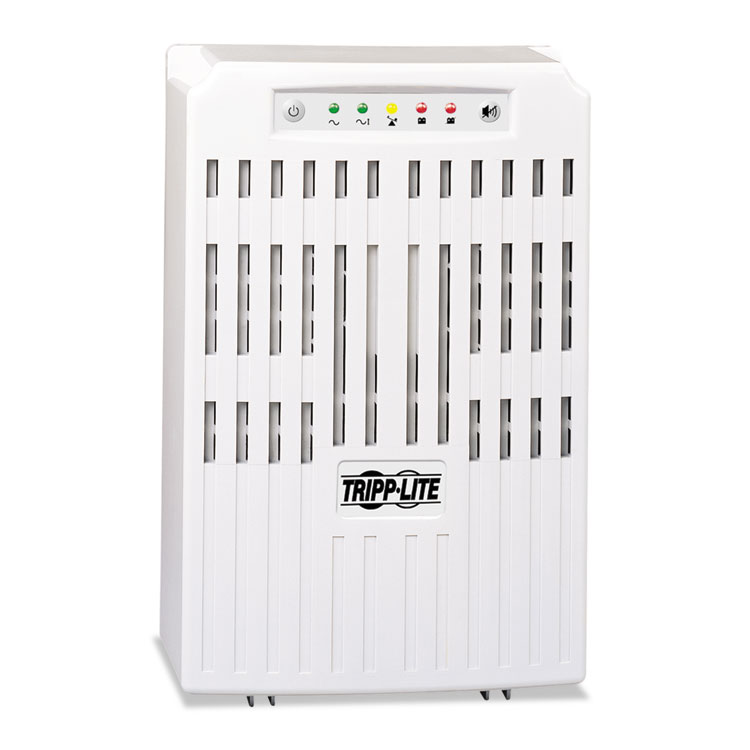

SMART2200VS SmartPro Tower UPS System, 9 Outlets, 2200 VA, 480 J
Featuring compact tower form factors, Tripp Lite's SmartProŽ Tower UPS Systems protect connected equipment including servers, telecom systems and workstations against data loss, downtime and equipment damage due to all power problems. Advanced automatic voltage regulations provides regulated 120V output without using battery power during brownouts and overvoltages. USB or DB9 communication ports enable PowerAlert software to provide UPS and site power monitoring, plus automatic file saves and safe unattended shutdown of connected equipment in the event of a prolonged power failure.
| $1,110.19USD | Retail $1,606.18 |
Manufacturer:
Tripp Lite
Item:
SMART2200VS
UPC Code:
037332115874
Condition
New
Extended Warrenty
| 1 Year Extended Warrenty | $222.04 |
$1,110.19USD EA
$1,606.18
$1,606.18
Availability
In Stock
You may be also interested
Product description
Tripp Lite UPS Smart 2200VA 1600W Tower AVR 120V USB DB9 SNMP for Servers - 2200VA/1600W - 7 Minute Full Load - 7 x NEMA 5-15R, 2 x NEMA 5-20R
2200VA/1600W - 7 Minute Full Load - 7 x NEMA 5-15R, 2 x NEMA 5-20R
Specifications
Additional Information
- 2200VA / 1600 watt output capacity accommodates a variety of server networking and telecom devices
- High power density 2.2kVA UPS system occupies only 106 square inches of floorspace with a height of only 14.25 inches
- Compatible with North American 120V / 60 Hz power as found in the USA Canada and Mexico
- Offers 7 minutes runtime with a full load of 2200VA and 19 minutes with a half load of 1100VA
- Line interactive voltage regulation corrects severe brownouts and overvoltages from 79 to 147v back to normal 120v levels without using battery power
- 9 total outlets (7 NEMA5-15R; 2 NEMA5-15/20R)
- Includes NEMA 5-20 straight blade 20 amp input plug connection; package includes optional user installable NEMA 5-15 input plug connection
- Notification of system status via 5 LEDs and multi-function audible alarms
- Included PowerAlert Software provides e-mail or pager notification of power problems and the simultaneous automatic unattended shutdown of multiple servers
- 4 built-in communications ports (2-DB9 2-USB) for remote monitoring and unattended shutdown
- Slot for SNMP/web card (part#: SNMPWEBCARD) and environmental sensor (part#: ENVIROSENSE) for remote communications in large IP environments
- Supports Tripp Lite's WatchDog software application to restore unresponsive programs by automatically restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again
- Communication ports support on battery low battery power restored AC line voltage DC battery voltage load percentage battery charge current battery capacity internal UPS temperature and line frequency status messaging. Interface supports timed inverter shutoff after unattended shutdown activate self-test and 10 second reboot of connected equipment
- 3 pairs of customized load management receptacles can be individually powered off and back on again via software interface to reboot remote equipment or automatic "load shedding" of less critical loads to extend battery runtime for the most critical equipment
- Built-in Emergency Power Off (EPO) interface supports emergency shutoff in large facilities
- Hot-swappable / user replaceable batteries allow on-site battery replacement through the front panel without powering off connected equipment or removing the UPS from the rack
- UPS battery set ships fully assembled and ready for use no time consuming connection of individual internal batteries by user is necessary
- UL (USA) cUL (Canada) NOM (Mexico) FCC Class A
- $250000 Ultimate Lifetime Insurance. No warranty cards required for coverage!
- 2 year manufacturers product warranty
Alarm
Low Battery
Alarm
On Battery
Alarm
Overload
Alarm(s)
Audible
Alarm(s)
Audible
Automatic Voltage Regulation (AVR)
Yes
Automatic Voltage Regulation (AVR)
Yes
Backup Time at Full Load
7 minutes @ 2200 Volts
Backup Time at Full Load
7 minutes @ 2200 Volts
Backup Time at Half Load
19 minutes @ 800 Watts
Backup Time at Half Load
19 minutes @ 800 Watts
Backup/Run Time (Full Load)
7 Minute
Backup/Run Time (Half Load)
19 Minute
Battery Chemistry
Sealed Lead Acid (SLA)
Battery Life
6 Year
Battery Life
6 Year
Battery Life
6 Year
Battery Recharge Time
4 h
Battery recharge time
4 h
Battery recharge time
4 h
Brand Name
Tripp Lite
Certifications & Standards
UL1778 (USA) cUL (Canada) FCC Class A (emissions) NOM (Mexico) Conforms to IEEE 587 / ANSI C62.41 specifications
Color(s)
Gray
Color(s)
Gray
Color(s)
Gray
Compliance Standards
Conforms to UL1778 Standards
Compliance Standards
Conforms to UL1778 Standards
Compliance Standards
Conforms to UL1778 Standards
Compliance Standards
FCC Class A Certified
Compliance Standards
FCC Class A Certified
Compliance Standards
FCC Class A Certified
Compliance Standards
CSA Certified
Compliance Standards
CSA Certified
Compliance Standards
CSA Certified
Compliance Standards
RoHS Compliant
Compliance Standards
RoHS Compliant
Compliance Standards
RoHS Compliant
Connected Equipment Guarantee/Warranty
$250000 Connected Equipment Guarantee
Connected Equipment Guarantee/Warranty
$250000 Connected Equipment Guarantee
Connected Equipment Guarantee/Warranty
$250000 Connected Equipment Guarantee
Connector/Port/Interface
USB
Connector/Port/Interface
USB
Connector/Port/Interface
USB
Connector/Port/Interface
DB9
Connector/Port/Interface
DB9
Connector/Port/Interface
DB9
Cord Length
8 ft
Cord Length
8 ft
Cord Length
8 ft
Country of Origin
Switzerland
Country of origin
Switzerland
Country of origin
Switzerland
Depth
12"
Depth
12"
Depth
12"
Disclaimer Statement
Run Time based on a load equivalent to one half of the unit's capacity.
Disclaimer Statement
Run Time based on a load equivalent to one half of the unit's capacity.
Disclaimer Statement
Run Time based on a load equivalent to one half of the unit's capacity.
Emergency Power Off (EPO)
Yes
Emergency Power Off (EPO)
Yes
Form factor
Tower
Form factor
Tower
Form Factor
Tower
Height
14.3"
Height
14.3"
Height
14.3"
Height
14 1/4"
Height
14 1/4"
Height
14 1/4"
Hot Swappable
Yes
Input frequency
60 Hz
Input frequency
60 Hz
Input Frequency
60 Hz
Input voltage
120 V AC
Input voltage
120 V AC
Input Voltage
120 V AC
Joules Of Surge Protection
480 J
Joules Of Surge Protection
480 J
Joules Of Surge Protection
480 J
Limited Warranty
3 Year
Load Capacity
2200 VA/1600 W
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
Load Capacity (VA)
2200 VA
